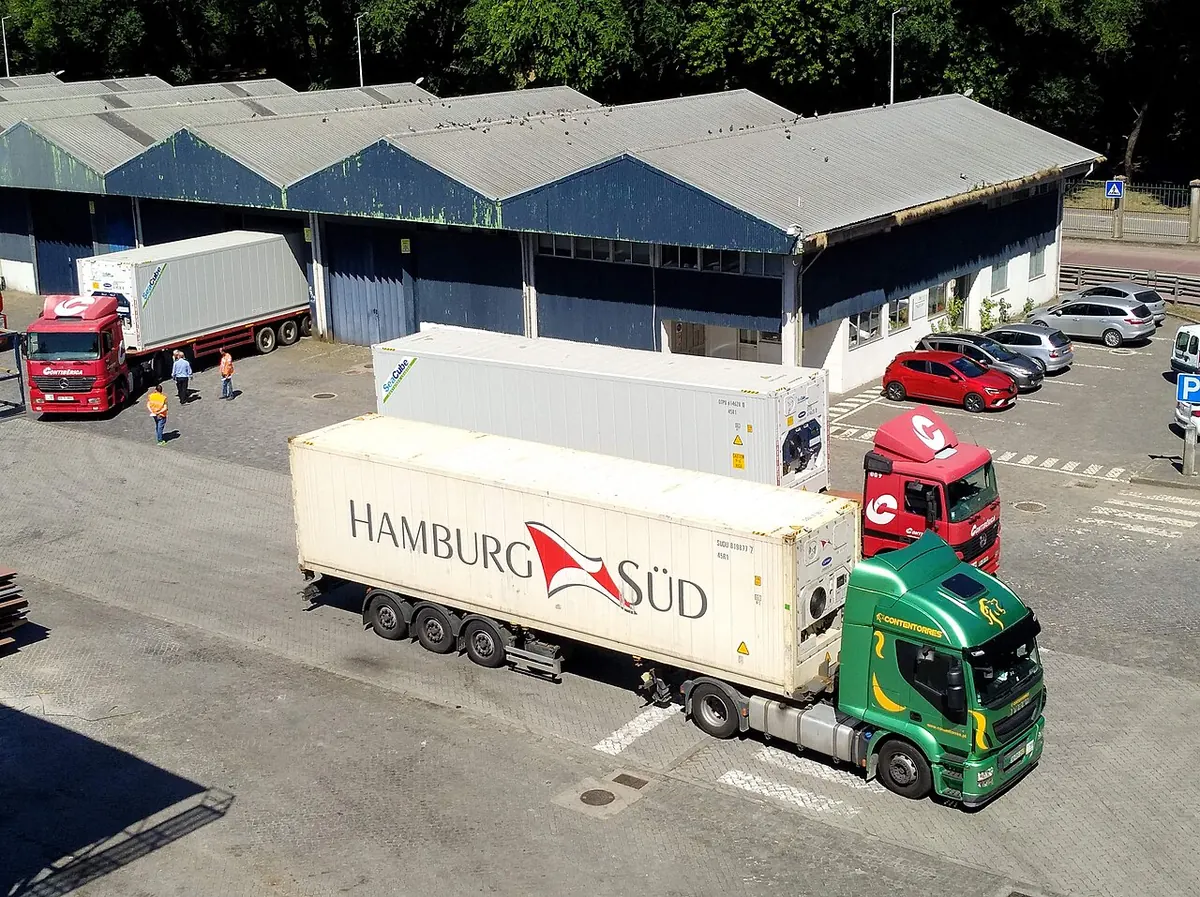

Refrigerated / Reefer
For goods requiring controlled temperatures. Machinery and airflow reduce usable space: confirm dimensions, temperature and loading limits.
Information only · This equipment is not included in the current load-planning engine.Choose the equipment. Check every dimension.
Volume is only the beginning. Door clearance, weight and loading methods also determine the equipment you need.
REFERENCE PROFILE
20 ft standard
33,2 m³Nominal volume
28.130 kgExample maximum payload
- Interior · length × width × height
- 5.900 × 2.352 × 2.395 mm
- Door · width × height
- 2.340 × 2.292 mm
- Reference nominal volume
- 33,2 m³
- Example maximum gross weight
- 30.480 kg
- Example tare weight
- 2.350 kg
- Example payload
- 28.130 kg
Confirm the assigned container’s dimensions and plate. Nominal volume is not the same as usable cargo volume.
View reference specifications ↗| Equipment | Interior length | Interior height | Door height | Nominal volume | Example payload |
|---|---|---|---|---|---|
| 20 ft standard | 5.900 mm | 2.395 mm | 2.292 mm | 33,2 m³ | 28.130 kg |
| 40 ft standard | 12.032 mm | 2.395 mm | 2.292 mm | 67,7 m³ | 28.750 kg |
| 40’ High Cube | 12.032 mm | 2.700 mm | 2.597 mm | 76,3 m³ | 28.600 kg |
Different equipment, different requirements

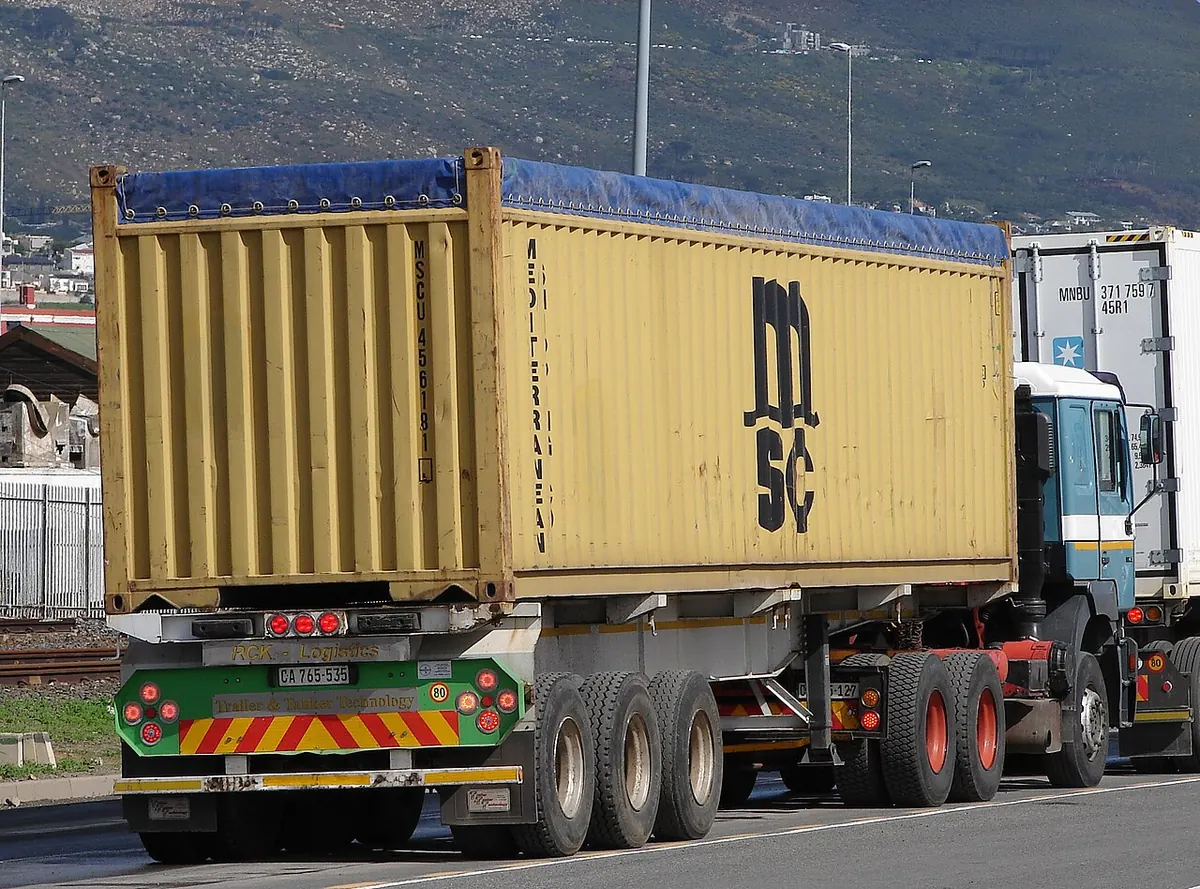

Open Top
Allows certain top-loading operations. Confirm the opening, cover and acceptance of oversized cargo before booking.
Information only · This equipment is not included in the current load-planning engine.

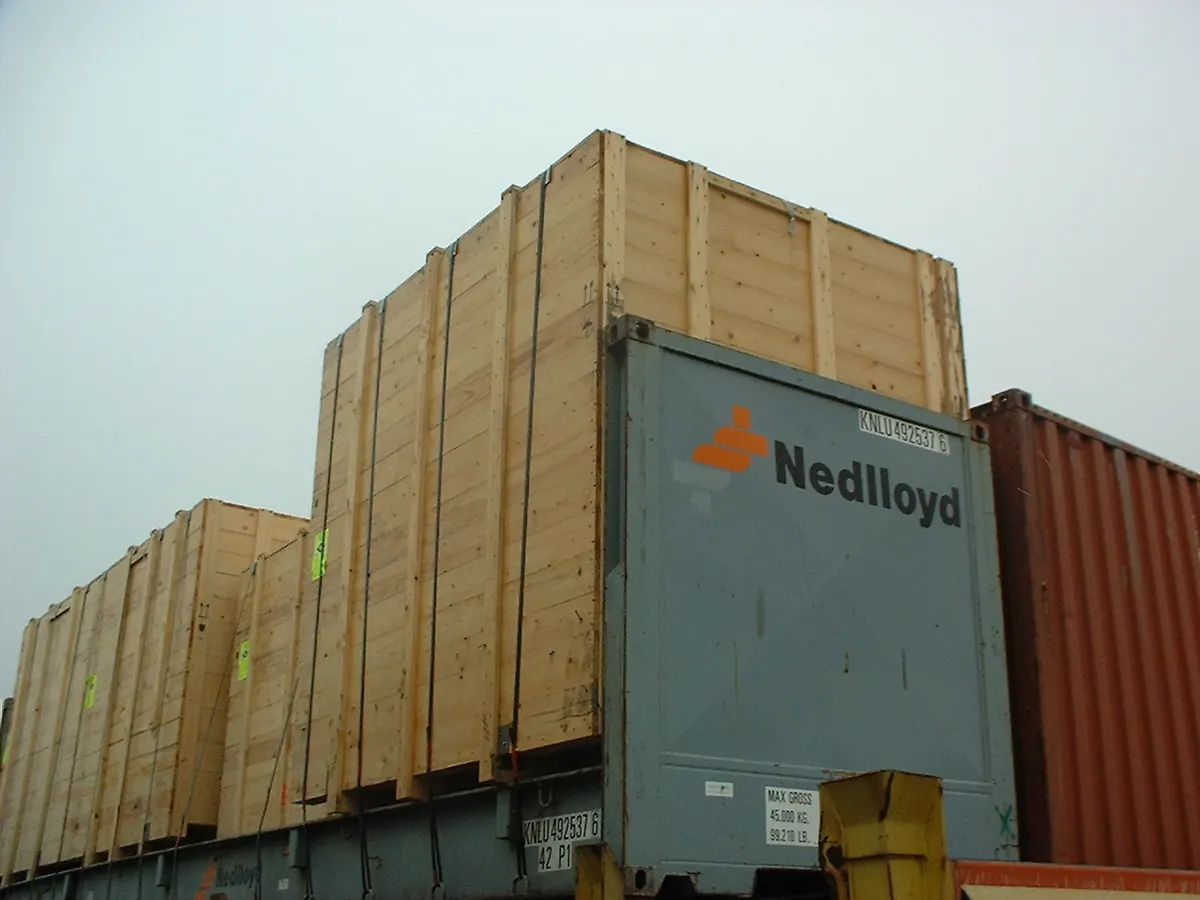

Flat Rack
A platform with end walls for certain heavy or oversized loads. Check support points, load distribution and securing arrangements.
Information only · This equipment is not included in the current load-planning engine.Before confirming loading
Measure the finished packaging, including skids and protrusions. Check the assigned equipment’s dimensions and plate, payload, floor strength, securing and handling. Door clearance can prevent an item from entering even when it would fit inside.
